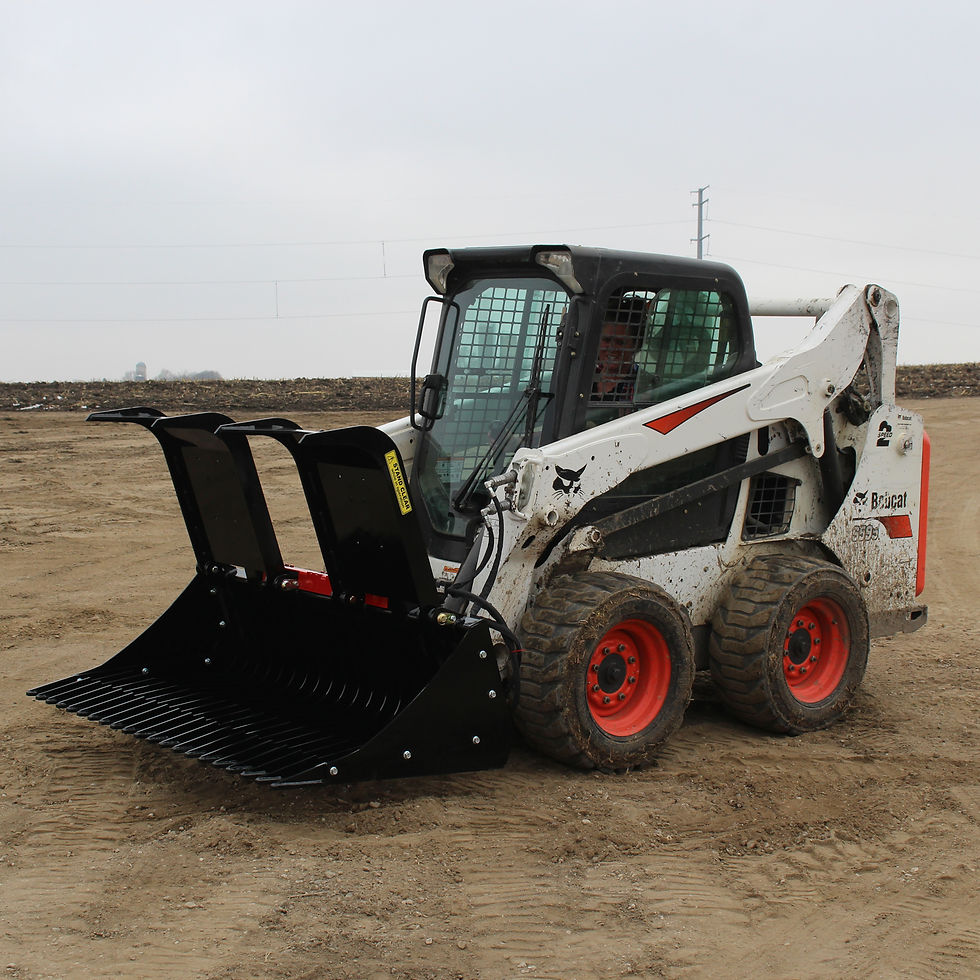

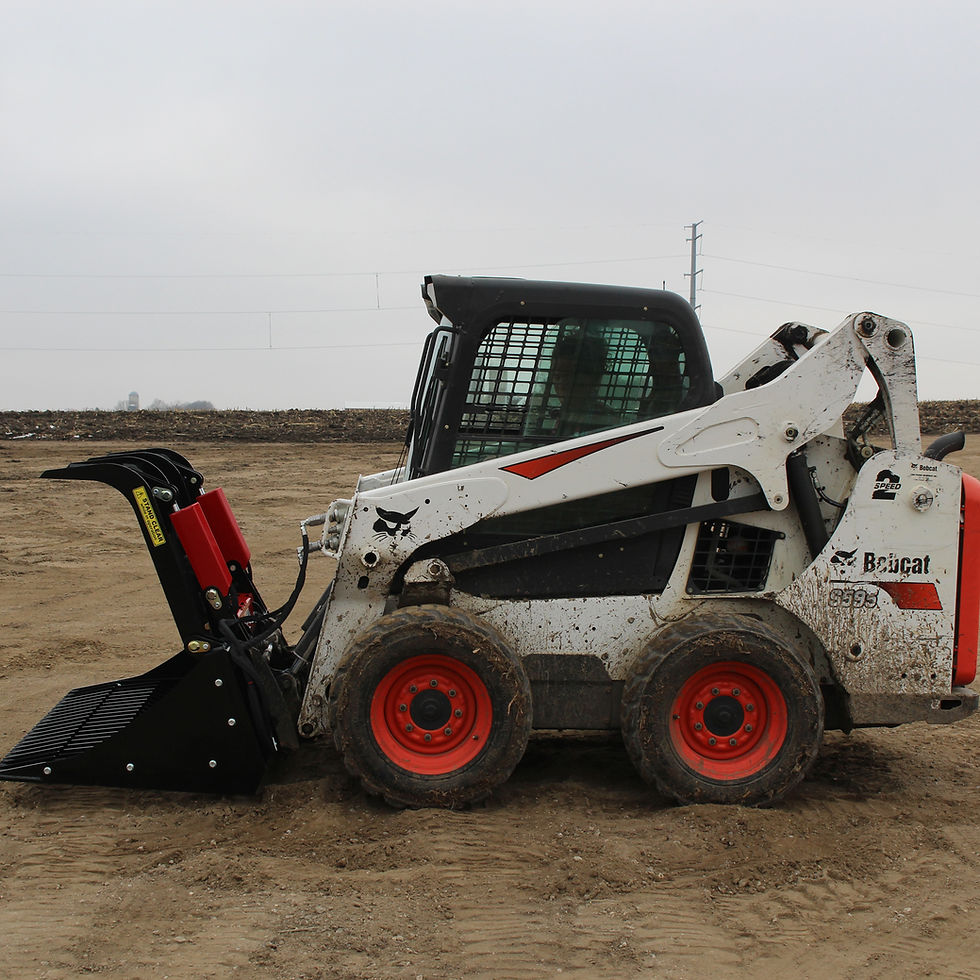

Messer Attachment Rock Bucket Grapple
Efficiently remove rocks while preserving your fields with the Messer Attachment Rock Bucket Grapple. Our unique one-piece tooth design creates an exceptionally strong bucket by eliminating weld points. While this construction method increases costs, it significantly enhances durability.
Crafted from high-strength materials, including 3/8″ Grade 50 steel teeth and an AR400 steel cutting edge, our bucket is built to withstand rigorous use. The 3″ spacing between teeth and the solid flat bar connections provide optimal rock-handling performance. The rear flat bar transforms the bucket into a land leveler, offering added versatility.
Our innovative design incorporates a rock dam and tooth notch to prevent rocks from escaping, while the high-visibility yellow color ensures safety. For added flexibility, the bolt-on sides can be removed to handle brush, logs, or manure.
The independent dual grapple hooks, constructed from ½” Grade 50 steel, provide superior gripping power and prevent damage from uneven loads. To protect your investment, we offer optional rod end guards in addition to standard base end cylinder guards.
Careful hose routing and clamping minimize pinch points and wear, while the abrasion-resistant sleeve safeguards against damage. All hydraulic components are pressure-tested and filled with oil for immediate use.
Our commitment to quality extends to the sandblasting and powder coating process, performed in-house. This attention to detail is reflected in our industry-leading 2-year warranty and 30-day satisfaction guarantee.
Key Features:
- One-piece tooth design for superior strength
- High-strength steel construction
- Versatile design for multiple applications
- Independent dual grapple hooks
- Comprehensive protection and maintenance features
- Industry-leading warranty
Experience the Messer difference.
Specs
| Brand | Messer Attachments |
|---|---|
| Model # | RBG68 |
| Overall Width x Height | 69" x 30" |
| Overall Depth | 42" |
| Thickness of Teeth | 3/8" Grade 50 (30% stronger) |
| Spacing Between Teeth | 3" |
| Grapple Jaw Opening | 42" |
| Cylinders/Cylinder Size | 2 at 2" x 8" 3500 psi welded cross tube |
| Weight (lbs) | 875 |
| Rated Operating Capacity | 4,000 lbs |
