Description
All heavy duty models include standard duty features plus inside vertical supports
Optional double bevel bolt-on edge, holes are punched in if ordered with bucket
Flat Face Couplers Included
Rated Operating Capacity
Heavy Duty 3000 lbs. +
Comes standard with cylinder guards
Includes all features of heavy duty buckets above
Removable bolt-on sides allow for extra capacity included – model #MS-KIT

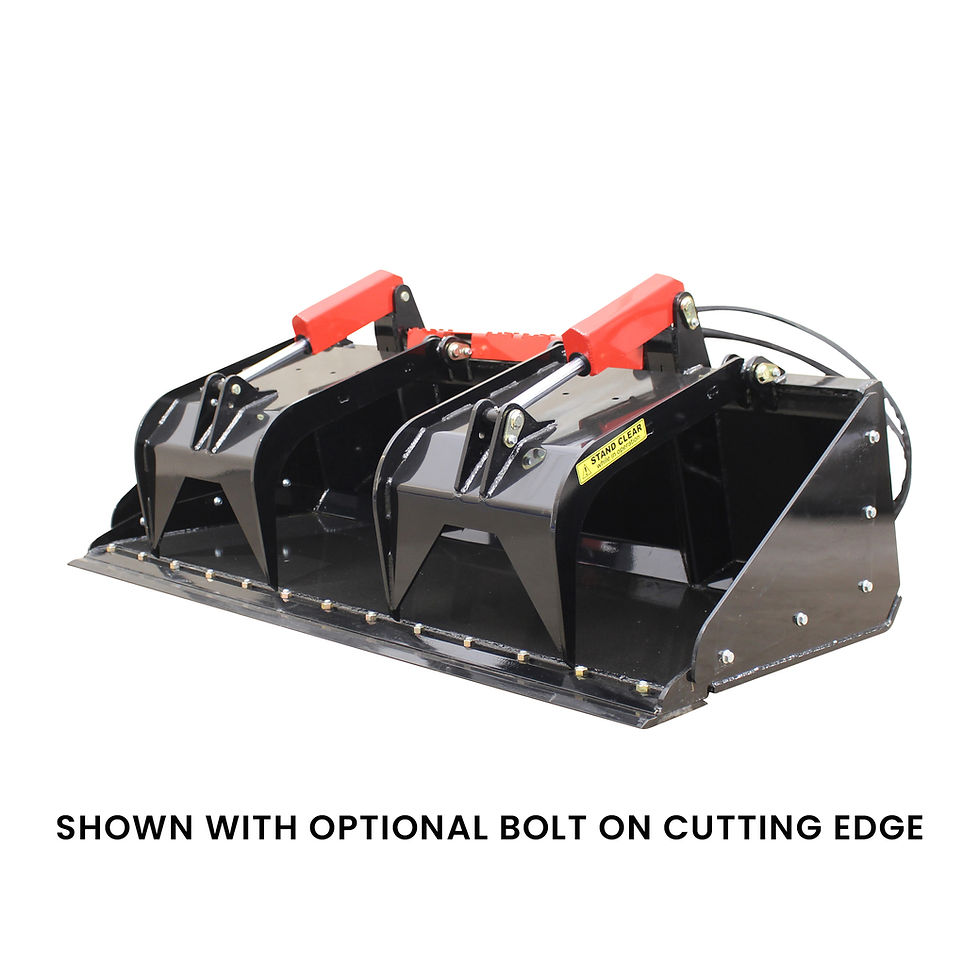

Optional double bevel bolt-on edge, holes are punched in if ordered with bucket
Dual grapple hooks that operate independently, made from ½” grade 50 plate (30% stronger)

Specs
Brand
Messer Attachments
Model #
MBG78
Overall Width x Height
79" x 31"
Overall Depth
38
Grapple Jaw Opening
44
Cylinders/Cylinder Size
2 at 2"x 8" 3500 psi welded cross tube
Capacity/Struck (cubic ft)
18.8
Capacity/Heaped (cubic ft)
22.6
Approximate Weight (lbs)
1000
Rated Operating Capacity
4,000 lbs
